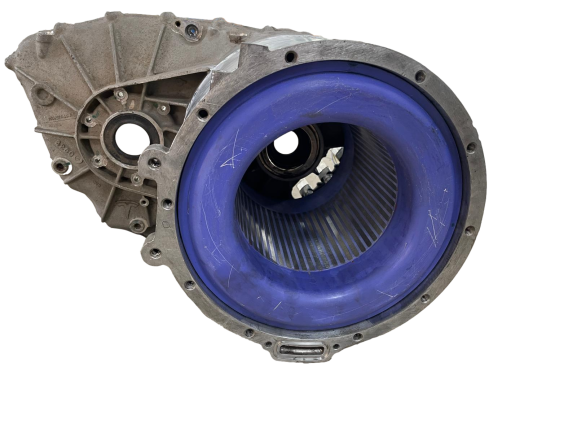

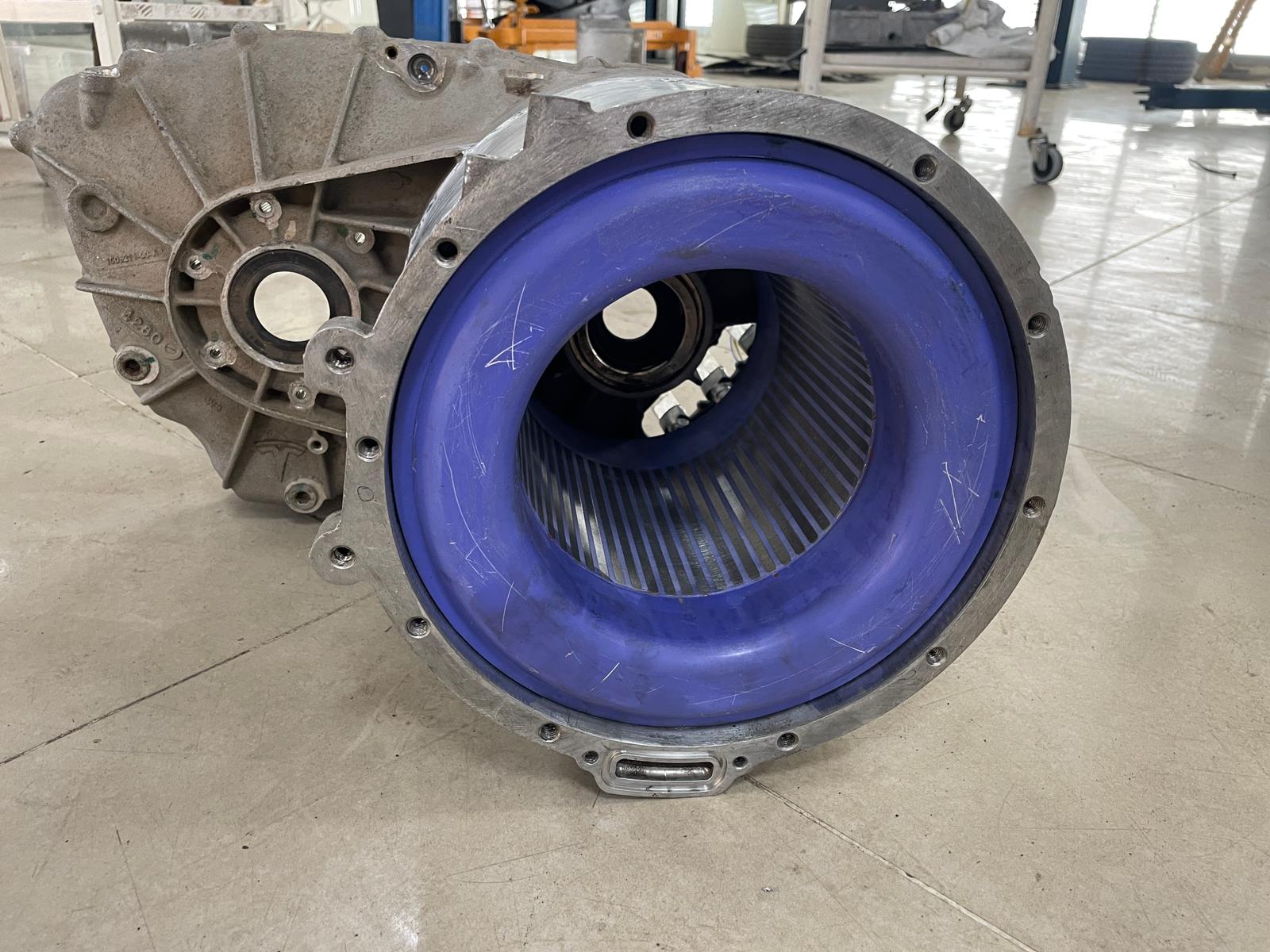

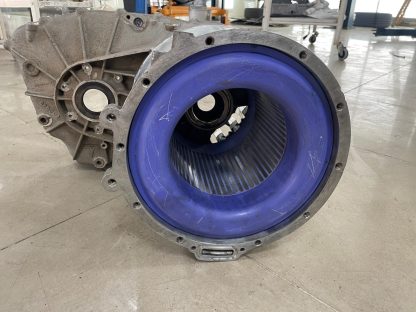

Tesla Large Drive Unit Stator – Tuned re-winding

Description

We provide cutting-edge refurbishment services for Tesla stator windings in both BASE and SPORT drive units, offering the following benefits:

• Enhanced thermal dissipation through the use of special epoxy.
• Reduction in stator overheating issues.
• A 3% increase in the phase cross-sectional area.
• Achieving a performance boost of 3-5%.
• Exceptional durability, making it virtually indestructible.

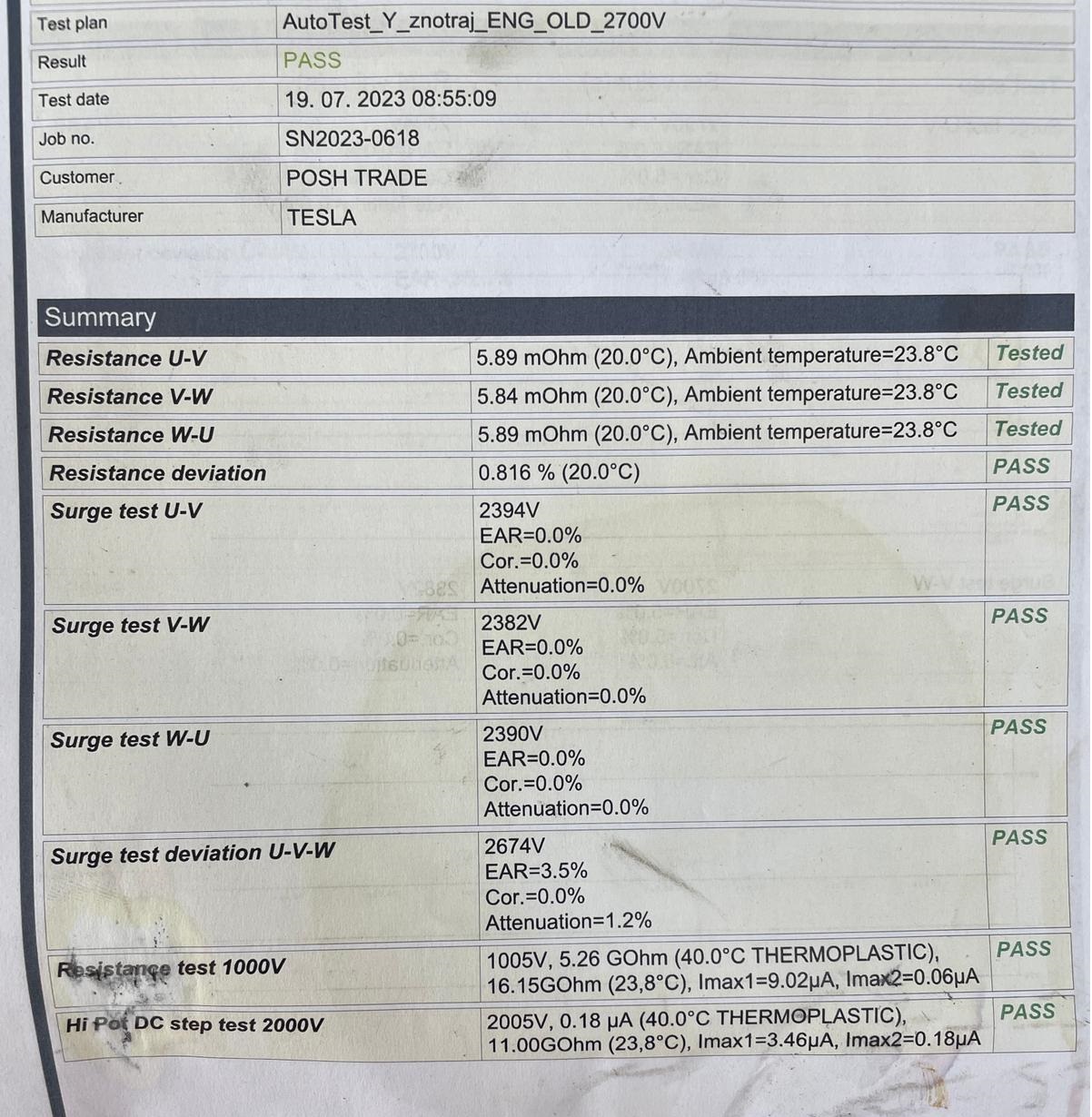

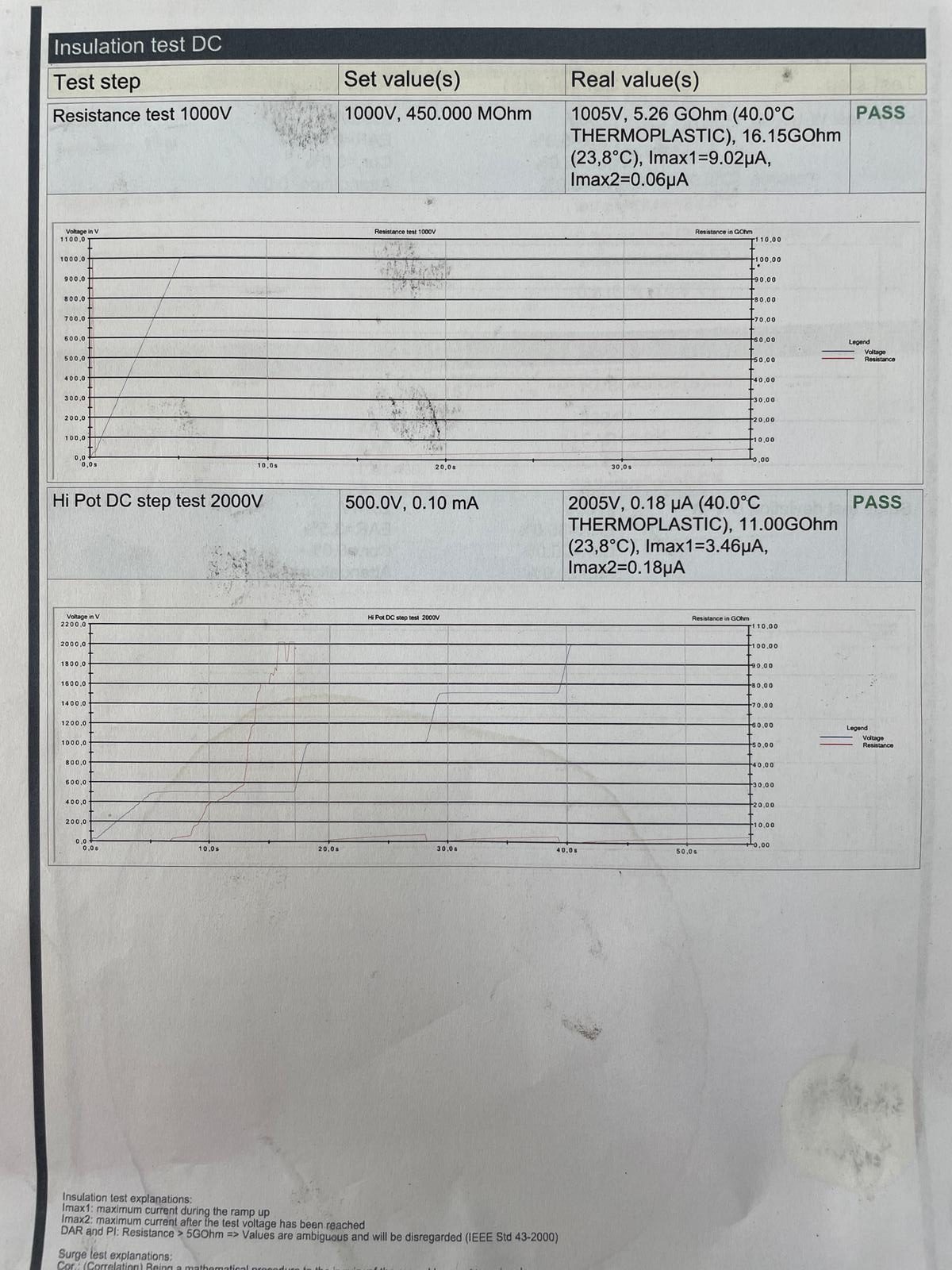

• High-quality wire winding with excellent isolation properties, boasting an ISOLATION rating of 4000Mohm.



QA – You must send us your stator so we can check for mechanical damage or unrepairable defect, we ship to you already repaired from stock.
QA – 2500+ TAX is only stator remanufacturing, shipping not included.
QA – Warranty 12months is limited only to defective wire winding, which never happened. Warranty not included if your motor floods coolant inside stator or any other man made defect. Our stator is resistant to flooding, but that doesnt mean it is submarine.
QA – Pallet shipping takes 5-7 days, 160kg.
QA – Rebuilding process usually takes 15 days per motor.





Our stator project has undergone rigorous testing and received approval after covering 15,000km of road and high-speed testing. One notable highlight was the surprisingly low energy consumption during high-speed testing in Germany. (260Wh/km Hilden – Regensburg)

To take advantage of our services, please send us your damaged unit, and we will return it to you in a refurbished condition. Please note that we do not accept damaged drive unit shells.
