Description

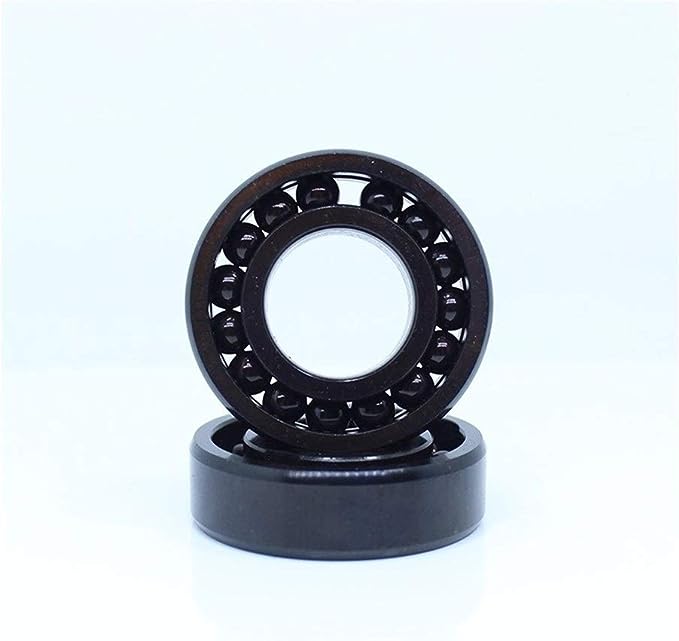

Hybrid single row deep groove ball bearings equipped with seals on both sides feature rings crafted from bearing steel and rolling elements composed of high-grade silicon nitride (Si3N4), ensuring the bearings are electrically insulating. The integrated sealing mechanism significantly extends the operational lifespan of the bearings by maintaining lubrication within and preventing contaminants from entering. The silicon nitride components not only safeguard against electric current damage, but also, in comparison to bearings of the same size with steel rolling elements, offer improved bearing performance, prolonged service life, heightened speed capabilities, exceptional wear resistance, enhanced bearing stiffness, reduced susceptibility to smearing and false brinelling, and increased resilience to temperature variations. These attributes render them suitable for demanding conditions and environments prone to contamination.
Calculation data
Basic dynamic load rating | C |
3 574 lbf
|
---|---|---|
Basic static load rating | C0 |
2 293 lbf
|
Fatigue load limit | Pu |
72 lbf
|
Reference speed |
26 000 r/min
|
|
Limiting speed |
14 000 r/min
|
|
Calculation factor | kr |
0.025
|
Calculation factor | f0 |
14.8
|
