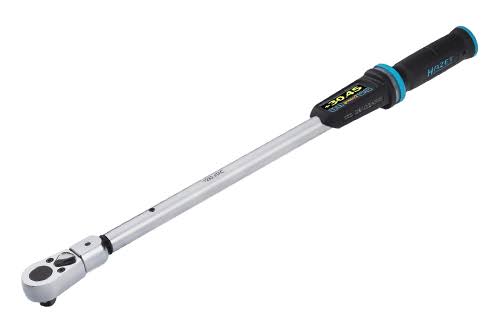

HAZET 7281-2STAC SmartTAC Electronic Torque/Angle Wrench 2.5–25 Nm, 1/4" + 9x12

HAZET 7281-2STAC SmartTAC Electronic Torque/Angle Wrench 2.5–25 Nm, 1/4″ + 9×12

2.123,75 € inc. VAT - 1.699,00 € exc. VAT

HAZET 7281-2STAC is a Made-in-Germany electronic torque and angle wrench from the SmartTAC series, covering 2.5–25 Nm with ±2 % tolerance. It combines a 9×12 mm insert square with a 6.3 mm (1/4″) square drive, so it handles low-torque HV battery work (module bolts, busbars, BMS and sensor connections) where a mechanical click wrench is simply not precise enough. Every tightening cycle is recorded digitally and transferred via Bluetooth, giving you a traceable torque log per repair.

Mandatory tool for all EV Clinic franchise partners. The 7281-2STAC is integrated with the EVC CRM: torque data from the wrench is linked directly to the work order, which is required for EVC repair documentation, warranty handling and quality audits. Non-connected wrenches are not accepted for franchise battery repairs.

EAN: 400089621531

SKU: EVCWRENCH98917283 Categories: , Tags: , , , ,

Description

Key features:

  • Torque range 2.5–25 Nm (1.85–18.5 lbf·ft), tolerance ±2 %
  • Combined torque and rotation angle measurement
  • 9×12 mm insert square + 1/4″ (6.3 mm) square drive
  • Digital display, audible and visual signal when target torque is reached
  • Bluetooth data transfer for logging and CRM integration
  • Compliant with DIN EN ISO 6789
  • Made in Germany
  • Supplied with calibration certificate

Why it is mandatory in the EV Clinic network:
EVC’s repair process for HV batteries and eDrive units requires documented torque values on every safety-relevant connection. The 7281-2STAC feeds those values into the EVC CRM automatically, so each work order carries a verifiable torque record. This is part of the franchise quality standard and a condition for EVC warranty coverage on repairs.

EAN 400089621531
