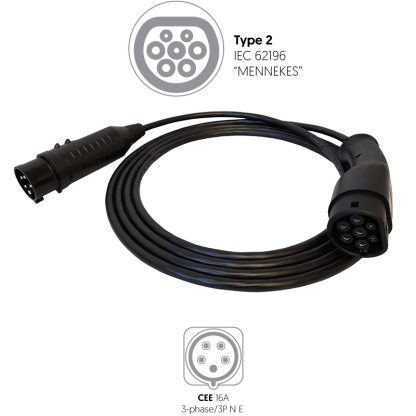

PC05T – 3X16A / 3-PHASE Universal Mobile Charger UMC 7m

799,00  inc. VAT - 639,20  exc. VAT

PORTABLE EV CHARGER for charging TESLA electric vehicles with Type 2 charging sockets from any standard home or public wall socket (230/400V power source). Supports 3-phase AND 1-phase charging with currents up to 3x16A (up to 11 kW charging power at 3-phases).

Integrated two “must-have” Tesla only features (same as present on Tesla Superchargers and Destination chargers):

  1.  Remote charge port opener
  2.  Charging plug unlocker

Compatible with European versions of TESLA Model 3, Model S and Model X electric vehicles.

SKU: MI09812354 Category:

Description

DESCRIPTION

Main features:

  • ALL-IN-A PLUG design – NO bulky box on the cable
  • 100% in-house developed miniature FULL feature vehicle communication module (Micro EVSE 2)
  • Designed for 3-phase and 1-phase Mode 2 EV charging with currents up to 3x16A
  • ADJUSTABLE CHARGING CURRENT (from 6A to 16A)
  • Integrated Tesla remote charging port opener and plug unlocker
  • Integrated self re-settable over-temperature protection with SOFT-OFF capability
  • PREMIUM quality EV cable used (Made in Germany)
  • Variable plug type (wall socket/grid side)
  • Variable cable lengths from 5m to 12m
  • Optional RCD protection Type B integrated inside CEE 16A (3-phase/3P N E) wall plug – still NO bulky box anywhere!
  • RAINPROOF

Cable properties * :

  • Resistant to microbes, oil, dust and water
  • Special cable design for long service life
  • Flexible at low temperatures (fully flexible temp. range: -25°C to 80°C)
  • Withstands high mechanical stress, in particular abrasion and sliding demands

[*] Applies to the insulated cable part only, not the electronics

EU DECLARATION OF CONFORMITY

SIQ TEST REPORT – PREVIEW
Technical Specifications:

  • Plug Type (EV Side): Type 2 (IEC 62196) Female Plug
  • Plug Type (wall socket/grid side): customer defined (CEE 16A (3-phase/3P N E), CEE 32A (3-phase/3P N E),….)
  • Max. Charging Current: 3x16A (3-phase) or 1x16A (single phase)
  • Charging current can be adjusted: 6A, 8A, 10A, 13A or 16A
  • Selected charging current stays stored in internal memory even when disconnected from the socket (power)
  • Max. Charging Power (single/three phase): 3,7 kW/11 kW
  • Rated Voltage (single/three phase): 230/400V
  • Operating voltage range (single/three phase): from 90V/155V to 270V/470V (50/60Hz)
  • Idle energy consumption: 7 Watt (EVSE and RCD)
  • Micro EVSE 2 inside EV plug – in-house developed FULL feature vehicle communication module
  • Ultra accurate and temperature independent QUARTZ controlled EV communication frequency
  • User info via Blue LED light
  • Detects/indicates ALL normal charging states (via Blue LED)
  • Detects/indicates ALL faults (via Blue LED)
  • Auto recovers from any possible fault !
  • Cable Length: customer defined
  • UV, oil and flame resistant cable insulation
  • Operating Ambient Air Temperature Range: -30 °C to 40 °C (at full sun exposure)
  • Integrated self re-settable over-temperature protection with SOFT-OFF capability
  • Optional RCD protection Type B integrated inside CEE 16A (3-phase/3P N E) wall plug – still NO bulky box anywhere!
  • IP Rating: IP54 (rain water resistant)
  • Cable Color: Black or Orange
  • Weight: depends on cable length
  • IEC 61851 compliant
  • CE approved
  • Warranty: 2 years

Compatibility:

Beside European versions of Tesla Model S, Model X, Model Y and Model 3 electric vehicles this portable charger is also compatible with all other electric vehicles equipped with Type 2 charging sockets.

Green production

All our products are produced in a carbon neutral way by using “Sustainable energy cycle” method. Production plant where we make charging cables and portable charging stations is the first fully sustainable production facility for EV charging cables. All energy, needed for the heating and cooling of the building, production process and for transportation of goods and employees (except deliveries of heavy materials by trucks), is produced by 2 photovoltaic power plants and stored in 4 storage batteries. Almost all of the raw materials we use (cables, plugs) are produced in EU, to shorten supply routes and support local economy. Buying our products helps developing sustainable economy.

Tesla Model 3 and Model Y note:


Tesla Model 3 vehicle on-board charger is phase sequence sensitive, what means that the phases have to be in a proper sequence 1-2-3 at wall socket. If they are not, the car will not charge. To check phases and phase sequence you can use our PHASE TESTER device.

What is RCD and how does it work?

RCD is an acronym for Residual Current Device – sometimes it can be called also Earth Leakage Circuit Breaker or Safety Switch. Its purpose is to prevent you from getting a fatal electric shock if you touch live part, such as a bare copper wire under high voltage. RCDs offer a level of personal protection that ordinary fuses/circuit-breakers cannot provide. RCD constantly monitors the electric current flowing through one or more circuits which it protects. If it detects electricity flowing down an unintended path, such as through a person who has touched a live part, the RCD will switch the circuit off very quickly, significantly reducing the risk of death or serious injury.
PC05T is equipped with Metron RCD Type B device called RCDB1-316CEE which represents maximum possible level of personal protection as it protects users from AC, pulsating DC, pure DC and also high frequency AC leakage currents. In order to ensure “BOXLESS” design of PC05T portable charger RCD is packed inside 3-phase 16A CEE plug itself what eliminates even the smallest unsafe section found on other portable chargers where there is at least 30cm of unprotected cable between wall plug and “bulky” in cable control box.

DISCLAIMER:

Metron® is not affiliated with or endorsed by Tesla. It is neither inferred nor implied that products sold by Metron® are authorized by or in any way connected to Tesla. All manufacturer names, symbols, and descriptions used in our images and text are used solely for identification purposes only. Tesla Model S, Model X, Model 3, Supercharger and Destination charger are trademarks of Tesla.
