Kia eNiro eDrive KIT V2 – Repair

The Kia eNiro electric drive unit has become widely known for characteristic milling, rumble and “wheel of fortune” noise coming from the electric motor and reduction gearbox assembly. In many cases, the root cause is progressive bearing wear, gearbox tolerance problems and oil contamination inside the MOBIS drive unit. Kia itself released technical service bulletins related to rumble noise and reduction gear failures on affected vehicles.

The EV Clinic Kia eNiro eDrive KIT V2 was developed from real-world teardown analysis and workshop repair deployment on multiple failed Kia and Hyundai electric drive units.

This is not a cosmetic repair. The kit targets the actual weak points found inside the drivetrain system.

Compatible Vehicles

• Kia eNiro 2019–2022
• Hyundai Kona Electric
• Other MOBIS 36500-0Exxx drive unit platforms

Compatible references include:

• 36500-0E710
• 36500-0E7xxx variants
• 457373B800
• ILJIN SB-356215D
• KBC F-577011.02.TR1

Common Failure Symptoms

Typical failures begin with a subtle humming or milling sound during low-speed acceleration. Over time, vibration increases and metallic debris contaminates the gearbox oil. If ignored, secondary damage can affect differential gears, rotor bearings and gearbox housings.

Most common symptoms include:

• Milling sound under acceleration
• “Wheel of fortune” rumble noise
• Whining or grinding from gearbox
• Clicking during torque transfer
• Vibration between 20–60 km/h
• Metallic particles in gearbox oil
• Rotor bearing slip damage
• Differential play and vibration

Why These Drive Units Fail

The MOBIS drivetrain platform suffers from several known engineering and tolerance issues:

• Rotor bearing movement inside housing
• Weak gearbox tolerance control
• Differential gear play
• Rotor overheating during highway driving
• Insufficient long-term oil protection
• Bearing preload instability

Kia technical bulletins acknowledge abnormal rumble and reduction gear issues on affected EV platforms.

Why Repair Instead Of Replace?

OEM replacement of complete drive units often costs several thousand euros, despite failures commonly originating from serviceable wear components like bearings, seals and differential components.

The EV Clinic eDrive KIT allows workshops to:

• Restore original drive unit
• Eliminate milling and rumble noise
• Prevent secondary drivetrain damage
• Reduce repair costs dramatically
• Retain OEM motor calibration
• Deploy sustainable component-level EV repair

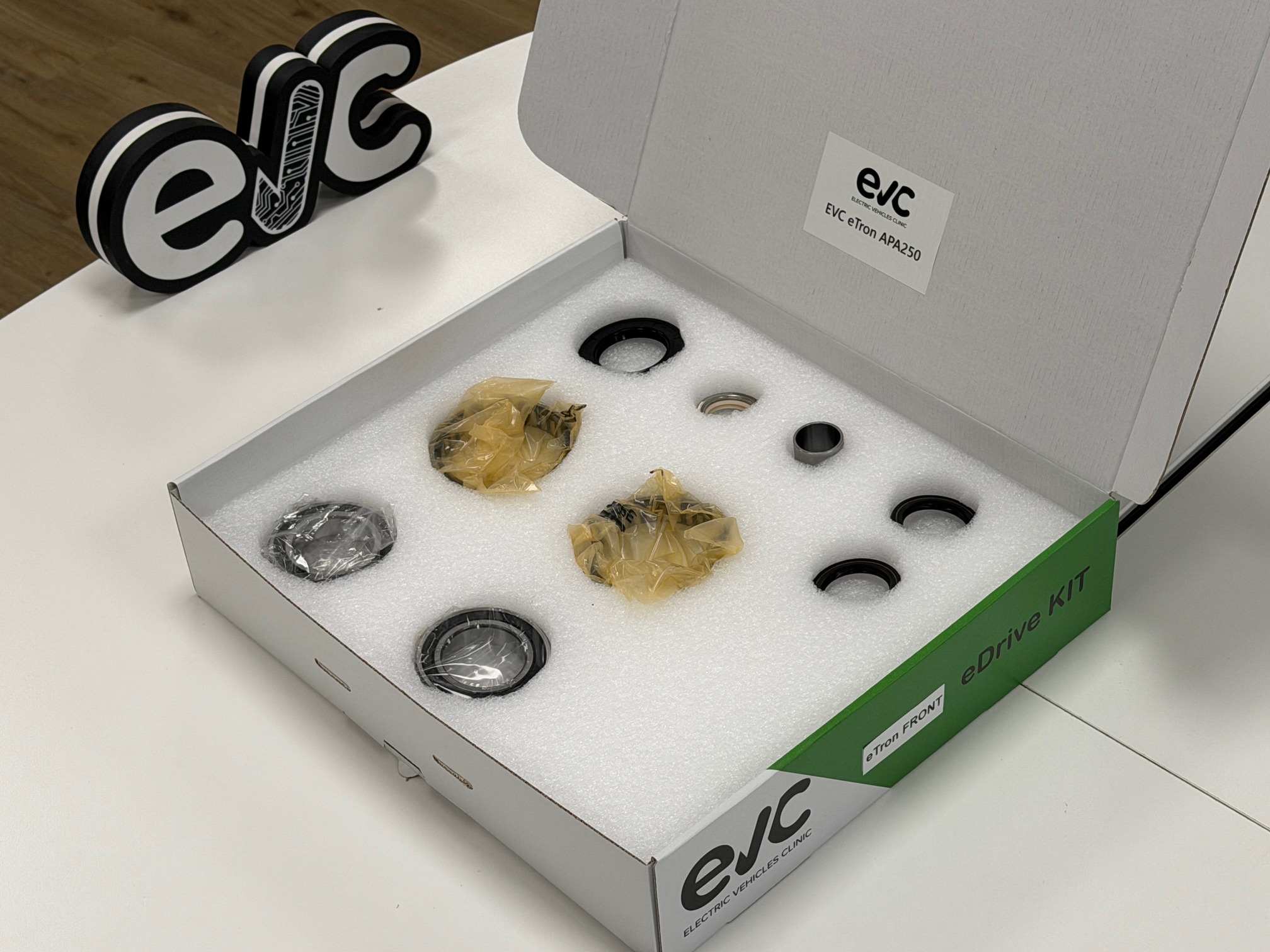

Kit Contents

The V2 repair kit includes:

• 8 high-quality ball bearings
• 2 ceramic rotor bearings
• Resonance protection components
• Rotor offset rings
• Differential offset ring
• Rotor axial vibration spring shim

This kit was designed specifically for real-world eNiro drivetrain failures and recurring workshop patterns.

Important Workshop Notice

This repair requires professional EV workshop equipment and experience.

The eNiro gearbox and motor assembly require manual verification of bearing-to-housing tolerances during rebuild. Differential play and gearbox wear must be inspected carefully before assembly.

In severe cases, differential refurbishment may also be required.

HV Level 3 safety procedures are mandatory before servicing the drivetrain.

EVC Academy repair procedures and training are available separately for workshops deploying this repair professionally.

KIT is non refundable.

KBC F-577011.02.TR1

457373B800

ILJIN SB-356215D
