453/Twingo R240 eDrive Removal / Repair / Inverter 5AQ Cloning / DCDC Swap Operation Manual #0220202681231

Price for operation manual:
Repair manual price: 1500€ + Tax
This operation manual is a proprietary business secret that outlines the successful refurbishment process for R240 eDrive, Inverter Cloning, DCDC Swap and general troubleshooting. By following the provided instruction steps, which include text, images, and videos, you will be medium equipped to repair the R Powertrain effectively and efficiently. Article is non-refundable
Info
You can charge this service: 1800-3500€
You need 16 labor hours to deploy this repair
NEW OEM eDrive 4000+TAX
NEW OEM PTCU Box 5500€+tax
Info
Common causes:
Info
Common causes:
  • Fault eDrive
  • Faulty Rotor
  • Faulty Valeo PTCU Sofware or Hardware
  • Faulty DCDC
  • Faulty BCB
  • Faulty EMI
Info

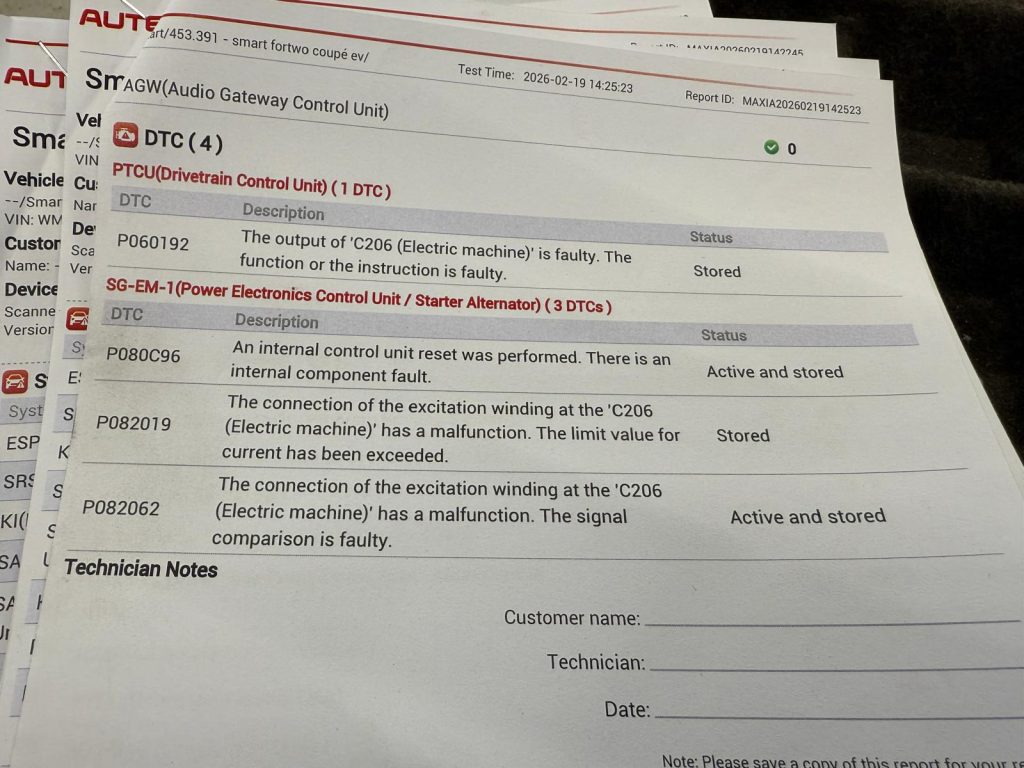

Errors:
  • P040516 DCDC Converter electrical fault,
  • P040587 DCDC Converter electrical fault - missinga message,
  • P060192 The output of C206 Electric Machine is faulty,
  • P060198 The output of C206 Electric Machine is faulty. The component has overtemperature,
  • P030487 CAN communication with C205 has a malfunction,
  • P080C96 An internal control unit reet was performed,
  • P082019 The connection of the excitation winding at the C206 Electric Machine has a Malfauction,
  • P082062 The connection of the excitation winding at the C206 Electric Machine has a Malfauction,
    DF030, Rotor Position Sensor Circuit,
  • DTC0841F3 ROTOR POSITION SENSOR CIRCUIT,
  • P0668 Current sensor error,
  • P0667 Current sensor error (Mains),
    P062721 There is an internal fault in control unit N83/10 22kw charger. The signal amplitude is less than the minimum amplitude,
  • P0633001 The function Circuit Power electronics driver N83/10 22k charger. There is a general electrical fault,
  • P0852F1  The 'DC/DC converter' component on control unit 'N129/1 ,
  • P0690, P1B0E
Info
Part numbers:

291A57976R,
291A55377R,
292A60154R,
292A60247R,
292A60232R,
292A60211R,
292A60176R,
292A60278R,

Info
Tools needed (prepare it) :
  • Workshop lift
  • Allen key 5,6,7,8,9.10
  • Torx 5,6,7,8,9.10
  • E7
  • Fluke Voltmeter
  • 5AQ Inverter / DCDC / EMI - Replacement parts depends on the defect(Available at our shop)
  • R240 eDrive Repair kit - Depends on the...
You have reached a restricted content! You must buy this online training operation manual to get access.
