Zoe/Kangoo Q210 291Axxxxxx TC1797 Inverter cloning operation manual #202608241612

Price for operation manual:
This repair manual price is: 1000€ + Tax
This operation manual is a proprietary business secret that outlines the successful cloning process for conti inverter system without destroying complete unit or battery pack. By following the provided instruction steps, which include text, images, and videos, you will be fully equipped to clone the inverter effectively and efficiently
Info
You can charge this service: 600€. New inverter is aprox. 6000€
You need approx. 8 labor hours to deploy this repair

WE DO NOT OFFER SOLDERING INSTRUCTION TO AMATEURS
WE DO NOT EXPLAIN .HEX and .BIN difference
WE DO NOT EXPLAIN HOW MINIWIGGLER WORKS AND HOW TO SAVE AND LOAD .BIN FILES - Read MINIWIGGLER MANUAL

MINIWIGGLER USE EXAMPLE:
Pass: 5aqpwend

CHECK HOW MINIWIGGLER WORKS
Info
Common causes:
  • Unknown hardware defect
  • Overheat
Info
Errors:
  • Unknown
Info
Part numbers:
  • 291A50697R
Info
Tools needed (prepare it) :
Info
Repair operation steps

Notes

  • You must download specific version of Infineon Memtool from this manual, newer versions will not work
  • You must use miniWiggler v2, new v3 will not work
  • DFLASH region in TC1797 flash is NOT continuous, you must read/write each region separately if you want to read it
  • Pullup resistors on TDI and TDO might not be required, but if you're having problems connecting using memtool you should add them

Summary

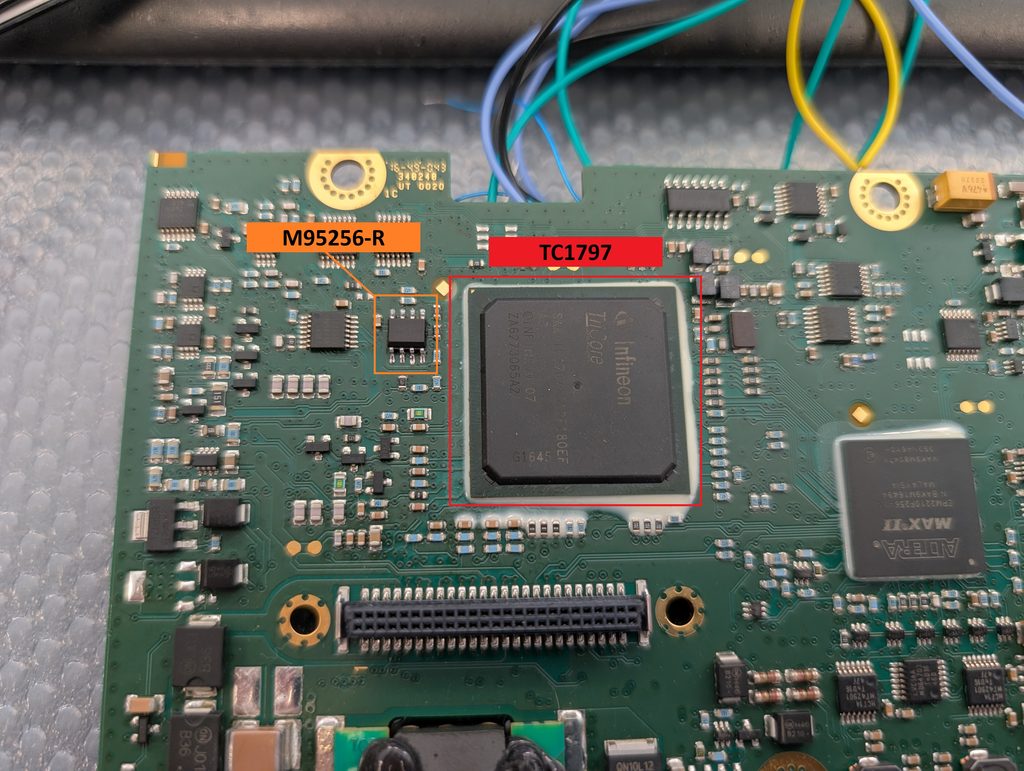

To clone the inverter you will need to clone or transfer the M95256 EEPROM from the original board to the donor. You must also read the PFLASH from the original boards TC1797 and write it to the donor board. DFLASH is not used and you can skip it

Part 1 - Cloning the TC1797

To clone the TC1797, you must make the following modification: Remove the "472" 0805 SMT resistor from the PCB. We leave it partially soldered to the bottom pad so we don't loose it, but it's important you break the connection to the top pad. If you're unsure leave it off the PCB until you are done with the cloning, but don't forget to place it back...

You have reached a restricted content! You must buy this online training operation manual to get access.
