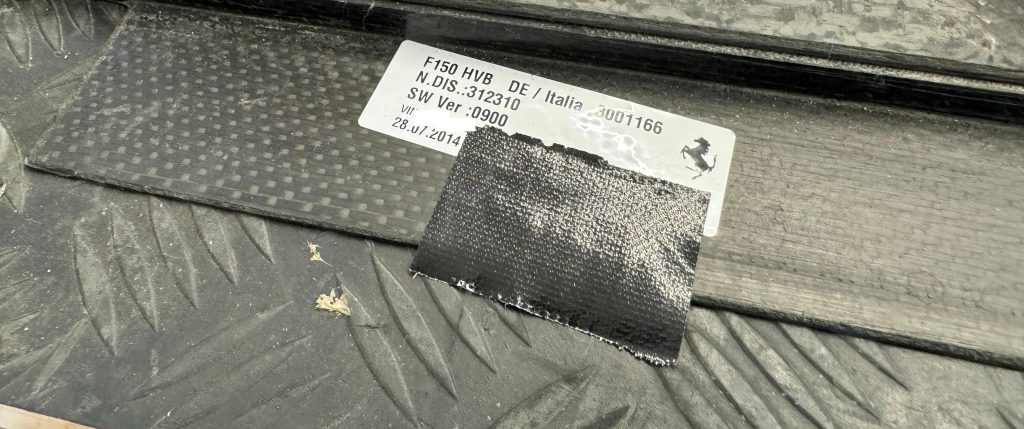

LaFerrari F150 HVB 3001166 N.DIS 312310 SW0900 Battery repair operation manual #16042025320554

This repair manual price is: 15,000€ + Tax BUY REPAIR MANUAL HERE
This operation manual is a proprietary business secret that outlines the successful refurbishment process for BMS system without destroying complete unit or battery pack. By following the provided instruction steps, which include text, images, and videos, you will be fully equipped to repair the HVB effectively and efficiently. In teasing part of article you can alligne if this article fits your needs. Article is non-refundable
You can charge this service: 4000-10,000€. New battery pack is aprox. 180,000€
You need 32 labor hours to deploy this repair
Common causes:
  • CAR CRASH FLAG
  • Cell imbalance
  • Battery deeply discharged due to prolonged inactivity
Errors:
  • P1A93
  • P1B93
  • Limited SOC - 30%-60%
Part numbers:
  • 3001166
  • 600573716
Tools needed (prepare it) :
  • Torx T20, T25,
  • Allen key 5,6,7,8,9.10
  • 10mm ratchet
  • Fluke Voltmeter
  • LAB Powersupply 400V
  • Lab discharge
  • Soldering iron and hot air gun
  • Spare part
  • Movable hydraulic liftbench
  • LV Connector pinout (included)
Repair operation steps
 Step 1:
Before performing any work on the LaFerrari F150 high-voltage battery system, it is mandatory to prepare a controlled and safe working environment in accordance with high-voltage safety protocols. Lvl 3 HV Access license needed.

Read error codes with diagnostic tool and confirm you have same error codes and faults.

Secure the work area – The workspace must be clean, dry, clearly marked as an HV zone, and equipped with proper safety gear (HV gloves, face shield, insulating mat).

Disconnect the 12V system

Perform safe high-voltage system shutdown – Using approved tools and following OEM procedures, disconnect the HV connectors and wait the required cool-down period for capacitor discharge.

Verify absence of voltage (Zero Voltage Verification) – Use an appropriate HV tester to ensure that no voltage is present in the system before proceeding.

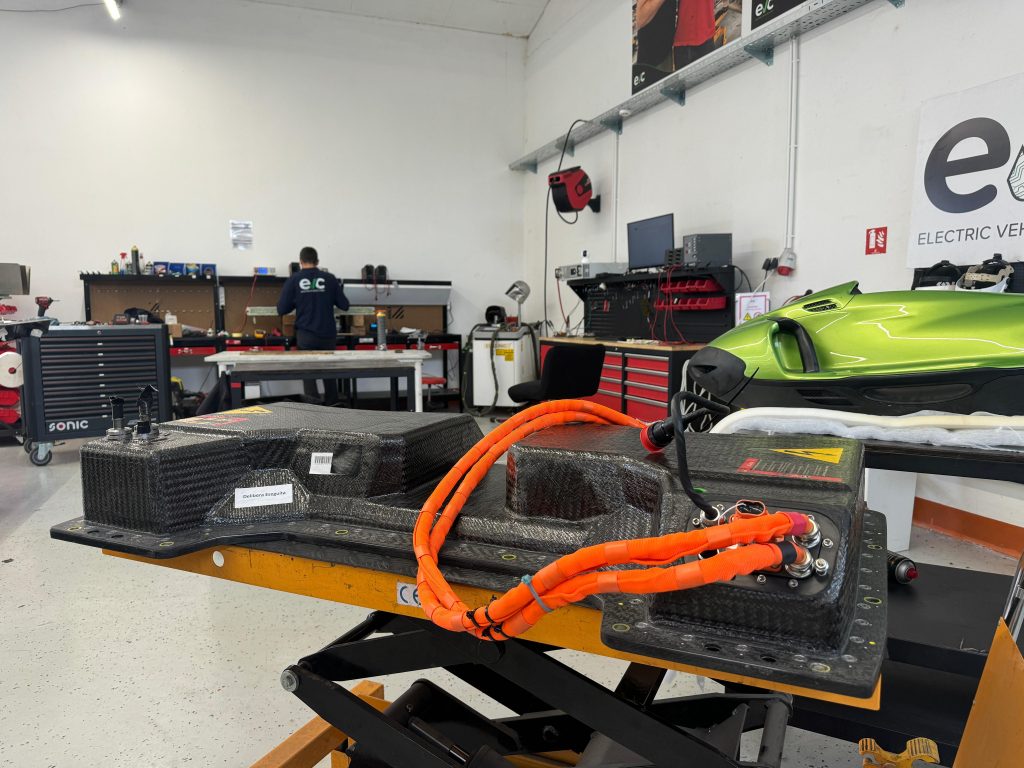

Remove the battery pack – Once confirmed safe, proceed with mechanical removal of the battery pack using factory mounting points and proper lifting equipment
 Remove all bolts around HV LV bracket and...
You have reached a restricted content! You must buy this online training operation manual to get access.
