BMW 48V Li-ion BMS G1.5 / MHEV Repair operation manual #202608061531

CONTACT US FOR PURCHASE
Price for operation manual:
Repair manual price: 1500€ + Tax
This operation manual is a proprietary business secret that outlines the successful refurbishment process for Drive inverter system. By following the provided instruction steps, which include text, images, and videos, you will be fully equipped to repair the LDU inverter effectively and efficiently. Manual is non-refundable

In purchase you will recieve 100 tokens for 10 resets for free. Each new token must be purchased

https://evclinic.eu/product/500-evc-tokens/

For UDS access you need EVC Expolorer PRO V2 - Contan us (www.ev.clinic)

Author: Ante

Info
Common causes:
  • whole 48V pack overdischarged
  • one or more 48V cells overdischarged or collapsed
Info
Errors / Symptoms:
  • battery errors
  • no voltage from 48V battery
  • 48V battery contactor stays open
Info
Context:

The BMW (mild) hybrid vehicles use a 48V li-ion battery with its own onboard BMS in the battery casing itself. If the BMS detects abnormal cell conditions (e.g. under-volt), the battery goes into lockout state, and the contactor stays permanently open. The batteries are usually LTO (Lithium Titanate), in a 20S configuration (2.4V * 20 = 48V)

Info
Part numbers:
  • 243.198.051-04 (board)
  • 243.509.011-03 (board)
  • 100RES-020335 (battery)
  • 61215A56E55
  • 61215A38DE7
  • 61215A38DE3
  • 61215A8D7E0
  • 61215A4AF23
  • 61215A46EA1
  • 612154078B0
  • 61215A64DD1
  • 61215B67379
  • 61215B38927
  • 61215B80872
  • 61215B80875
  • 61219857516
  • 61219442935
  • 61219857095
  • 61219857160
  • 61218795112
  • 61219399992
  • 5A56E55
  • 5A38DE7
  • 5A8D7E0
  • 5A4AF23
  • 5A46EA1
  • 54078B0
  • 9857516
  • 9442935
  • 9857095
  • 9857160
  • 8795112
  • 9399992
  • Compatible with selected:
  • BMW 3 Series G20 / G21
  • BMW 5 Series G30 / G31
  • BMW X3 G01
  • BMW X4 G02
  • BMW X5 G05
  • BMW X6 G06
  • BMW X7 G07
  • Other BMW 48V Mild Hybrid platforms
  • others
Info
Tools needed (prepare it):
  • one lab power supply for 12V
  • one lab power supply for 5V
  • either XPROG or Multi-Prog
  • soldering iron
  • wires (22-24AWG), ideally multi-colored
  • alligator clips
Info
Repair operation steps:

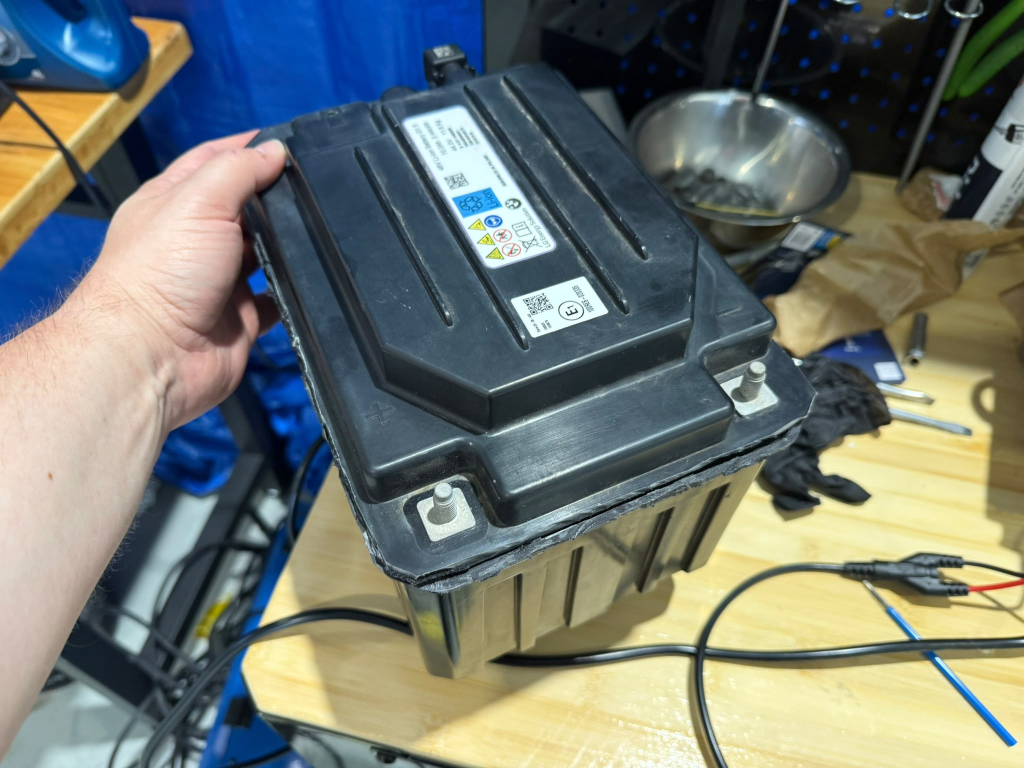

In order to get to the BMS you need to cut open the top of the battery (plastic) casing. Underneath, you will find the BMS board. The...

You have reached a restricted content! You must buy this online training operation manual to get access.
