Hybrid Battery – A789340xxxx BMS Software reset repair manual #20243245454

Repair manual price: 1400€ + Tax BUY REPAIR MANUAL HERE
This operation manual is a proprietary business secret that outlines the successful refurbishment process for BMS Battery system. By following the provided instruction steps, which include text, images, and videos, you will be fully equipped to repair the BMS effectively and efficiently
You can charge this service: 1500€ . New OEM Battery is 11000€
You need 4 labor hours to deploy this repair
Common causes:
  • Programmed defect
  • Deepdisharge through irresponsible use
  • Deepdischarge after crash incident
  • Botom SOC 0 discharge in bodyshop repair process
  • VCC Powerglitch activated programmed defect with contactor counter 0 error
  • Random programmed defect
  • Cell isolation
  • Degraded cell

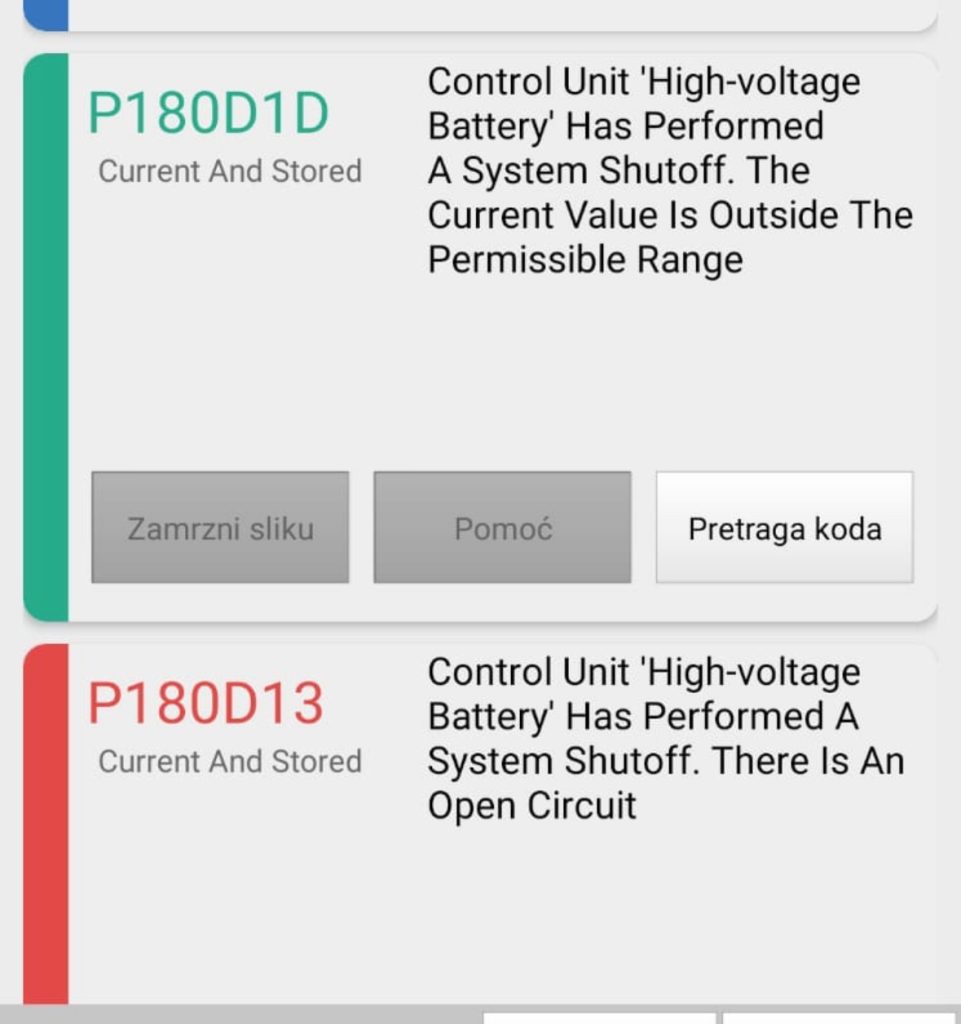

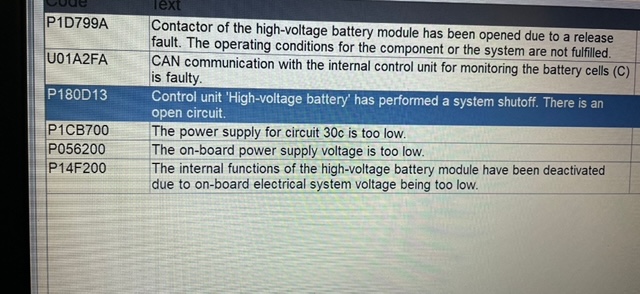

Errors:
  • P180D13,
  • P0CA600,
  • P0CA700,
  • P0DE7FB,
  • P0DE7FA,
  • P18051C,
  • P18051A,
  • P08A000,
  • P0AA4

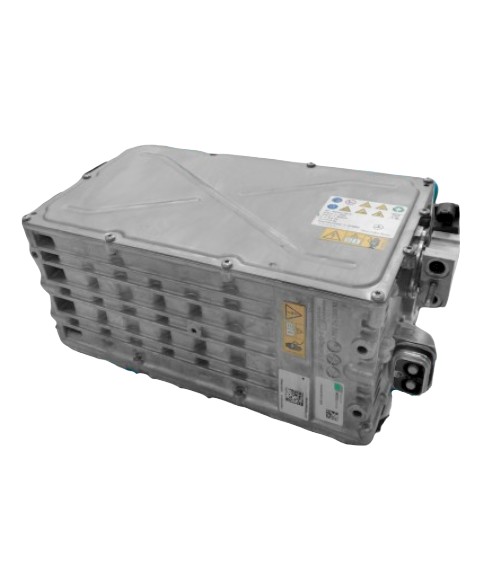

Part numbers:
  • A7893400303 ,
  • A7893402302 ,
  • A7893405202 ,
  • A7893405302 ,
  • A7893407302 ,
  • A7893400803 ,
  • and other A789340xxxx FBS3 and FBS4
Tools needed (prepare it) :
  • BDM frame tor boostrap
  • MPPS12 / 1 6 , any other Tricore tool for generic reading/writing
  • OBD2 brakeout cable
  • 12V lab power supply
  • Firmware file reset editor (available here)
  • Xentry C4 Tool or some universal OBD2 diagnostic tool
Repair operation steps

 1- First, troubleshoot and confirm that you have encountered errors from the list retrieved via the diagnostic Xentry tool. These errors can lead to a permanent lock of the Battery Management System (BMS), even after necessary repairs are made to the battery pack. In certain instances, such as when cells are deteriorated, leaked, or experiencing increased resistance in one cell, or if any other issue is present in the battery, attempts to reuse the battery pack will be futile because the BMS controller is indefinitely locked and requires a battery change as requested by OEM workshops. However, with our solution, you can repair the cell/pack and reprogram the BMS for reuse

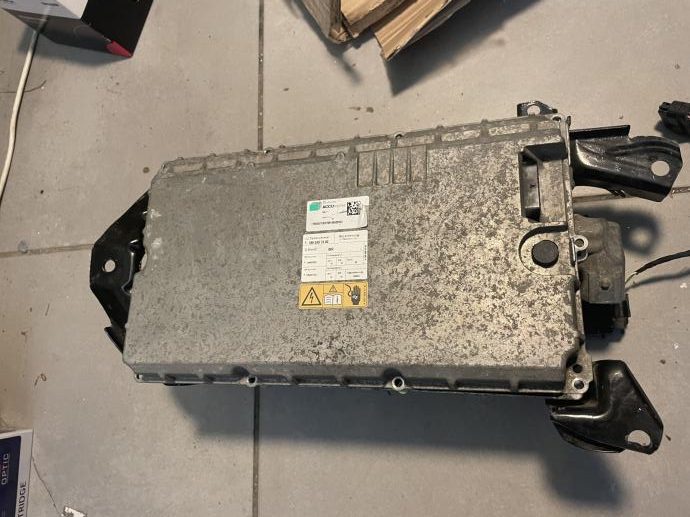

 2- Open battery cover by removing screws to release BMS aluminium cover, dont use screwdriver and dont damage PCB board

2- Open battery cover by removing screws to release BMS aluminium cover, dont use screwdriver...

You have reached a restricted content! You must buy this online training operation manual to get access.
