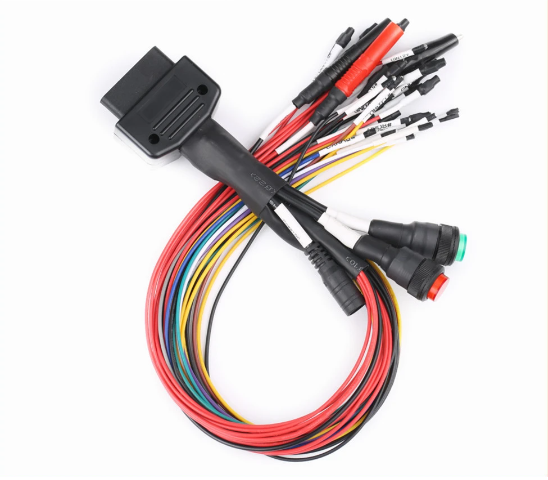

OBD2 Brake out wiring

Description

1. Supports DC power supply

2. Support safety protection banana head super programming dedicated connection port power supply.

3. Independent GND4, GND5 [meet the needs of special ECU programming].

4. With boot GND4 clip, compatible with programming equipment such as MPPS, FGTECH, KESSV2.

5. With GND4 GND5 short-circuit switch (some ECUs need to be switched to short-circuit mode when programming).

Note: The switch of GND4-5 is normally pressed to make it light. When some ECUs need to be independently connected to GND4 and GND5, release the switch.

6. With ignition analog switch (equipped with 1 large and 2 small dedicated ignition cables).

7. Support standard obd2 full protocol connection (double K line, double CAN line), 3 large and 2 small power plugs, 4 large GND, 4 small GND.

8. Equipped with CAN protocol communication resistance.
